Introduction

This document shows how to configure OpenVPN [1] on Mageia Linux to use the ProtonVPN [2] service.


Benefits

This method shown here enables connecting to ProtonVPN via OpenVPN without using the ProtonVPN "app" which, is only available for certain Linux distributions and not available for Mageia Linux.

A VPN (virtual private network) connection has several security benefits:

  1. Hides the source IP address (eg your ISP router's external Internet facing address) which is replaced by the external VPN endpoint IP address.
  2. Encrypts all your network traffic (both upload and download) between your computer/mobile/tablet and the external VPN endpoint IP address.

ProtonVPN offers both a free and paid VPN services. To use these it is necessary to register for a free account at: ProtonVPN

A ProtonVPN account can also be used to access the (free or paid for) ProtonMail service.


Preparation

The guidance given here is based on: How to manually configure OpenVPN for ProtonVPN in Linux which is written for Debian (and similar). The steps shown here have been tested on Mageia 8 and 9.


Preparation-1: sudo

Check that sudo is installed and configured as described here: Configuring_sudo


Preparation-2: tcptraceroute

The tcptraceroute command will show the network route to connect to systems and is useful to help understand how your connections reach their destination.

tcptraceroute is not installed by default in Mageia. Install with:

/bin/sudo urpmi tcptraceroute
^ Installing tcptraceroute


Preparation-3: create directories

Several downloads will be needed. Create directories ready for downloads and easy reference.

mkdir -p ~/Downloads/ProtonVPN/configs/
^ Creating two directories for PronVPN downloads
# directory comment
1 ~/Downloads/ProtonVPN/ for downloads of scripts, zip archives, etc
2 ~/Downloads/ProtonVPN/configs/ for downloads of openvpn configuration files


Preparation-4: Make some notes on the configuration before running openvpn connection

It will be useful to make notes about the network configuration before starting openvpn connections.
Check these again after the VPN is established and observe the differences.

Four things will change when the VPN is active:

  1. Network interface tun0 will appear
  2. IP address of default gateway
  3. IP address of nameserver
  4. External connection IP address

By making a note of these it will help to understand what changes openvpn makes when it establishes a VPN connection.


tun0 network interface

ifconfig tun0   # show if network interface tun0 is active


routing table, default gateway, and routing

netstat -rn                             # show the routing table

netstat -rn | grep ^0.0.0.0 | head -1   # show the IP address of the default gateway

/bin/sudo tcptraceroute google.com      # show the network route to external site


nameserver in /etc/resolv.conf

grep nameserver /etc/resolv.conf   # show the IP address(es) of any nameservers defined in /etc/resolv.conf


external IP address

dig TXT +short o-o.myaddr.l.google.com @ns1.google.com | awk -F'"' '{ print $2}'   # what is my external IP address?


Installing and configuring OpenVPN with ProtonVPN

Step-1: Install OpenVPN

/bin/sudo urpmi openvpn
^ Installing openVPN

Example:

[user@localhost ~]$ /bin/sudo urpmi openvpn

    distrib-coffee.ipsl.jussieu.fr::mageia/distrib/8/x86_64/media/core/updates/openvpn-2.5.0-2.1.mga8.x86_64.rpm
installing openvpn-2.5.0-2.1.mga8.x86_64.rpm from /var/cache/urpmi/rpms
Preparing...                     ###############################################################################
      1/1: openvpn               ###############################################################################
^ Example of installing openVPN


Step-2: Install resolvconf

If not already installed, install resolvconf:

/bin/sudo urpmi resolvconf
^ Installing resolvconf

Example:

[user@localhost ~]$ /bin/sudo urpmi resolvconf
[sudo] password for user:
Package resolvconf-1.79-5.mga8.noarch is already installed
^ Example of installing resolvconf
Here we see that resolvconf is already installed


Step-3: Install /etc/openvpn/update-resolv-conf script

This script [5] was posted on a Mageia Linux forum [3] .

Example of /etc/openvpn/update-resolv-conf follows:

#!/bin/bash
#
# Parses DHCP options from openvpn to update resolv.conf
# To use set as 'up' and 'down' script in your openvpn *.conf:
# up /etc/openvpn/update-resolv-conf
# down /etc/openvpn/update-resolv-conf
#
# Used snippets of resolvconf script by Thomas Hood <jdthood@yahoo.co.uk>
# and Chris Hanson
# Licensed under the GNU GPL.  See /usr/share/common-licenses/GPL.
#
# 05/2006 chlauber@bnc.ch
#
# Example envs set from openvpn:
# foreign_option_1='dhcp-option DNS 193.43.27.132'
# foreign_option_2='dhcp-option DNS 193.43.27.133'
# foreign_option_3='dhcp-option DOMAIN be.bnc.ch'

[ -x /sbin/resolvconf ] || exit 0

case $script_type in

up)
   for optionname in ${!foreign_option_*} ; do
      option="${!optionname}"
      echo $option
      part1=$(echo "$option" | cut -d " " -f 1)
      if [ "$part1" == "dhcp-option" ] ; then
         part2=$(echo "$option" | cut -d " " -f 2)
         part3=$(echo "$option" | cut -d " " -f 3)
         if [ "$part2" == "DNS" ] ; then
            IF_DNS_NAMESERVERS="$IF_DNS_NAMESERVERS $part3"
         fi
         if [ "$part2" == "DOMAIN" ] ; then
            IF_DNS_SEARCH="$part3"
         fi
      fi
   done
   R=""
   if [ "$IF_DNS_SEARCH" ] ; then
           R="${R}search $IF_DNS_SEARCH
"
   fi
   for NS in $IF_DNS_NAMESERVERS ; do
           R="${R}nameserver $NS
"
   done
   /bin/echo -n "$R" | /sbin/resolvconf -a "${dev}.inet"
   ;;
down)
   /sbin/resolvconf -d "${dev}.inet"
   ;;
esac
^ Copy this (above) to /etc/openvpn/update-resolv-conf. See also: [5]


Step-4: Set permissions on /etc/openvpn/update-resolv-conf

Make /etc/openvpn/update-resolv-conf executable:

# chmod 755 /etc/openvpn/update-resolv-conf
^ Set 755 permissions on /etc/openvpn/update-resolv-conf


Step-5: Register for free ProtonVPN account

In order to use the ProtonVPN service whether free or paid a registered login account is needed. Sign up here: register for ProtonVPN account.

Note that the registered account can also be used for the Free (and paid for) ProtonMail service.


Step-6: Login to ProtonVPN account

For this you will need to login to https://protonvpn.com using your (free) registered ProtonVPN account.

Login here: https://account.protonvpn.com/login

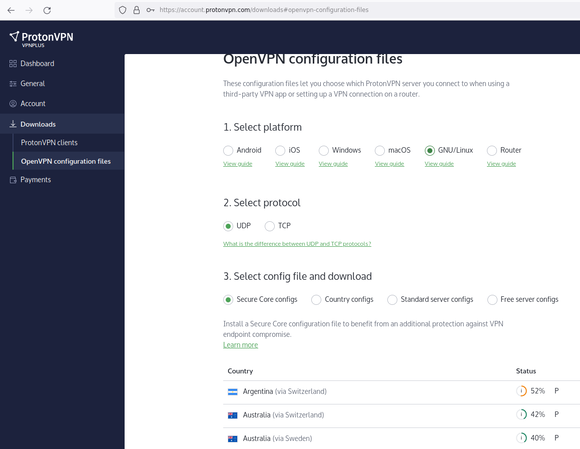

Step-7: Select and download ProtonVPN configuration file(s)

When logged in to ProtonVPN, click on Downloads in the left margin then select OpenVPN configuration files.
Make your selections to choose what you need to match your system.

You can either download individual .opvn configuration files or a zip archive of all.
It can save time to download one of the "all configs" zip files.
Then the choice of which .opvn connection file to use can be made when running the openvpn command.


Download single .opvn configuration files to: ~/Downloads/ProtonVPN/configs/.

Download zip collections to: ~/Downloads/ProtonVPN/ then:

cd ~/Downloads/ProtonVPN/configs/
unzip ../<zip-collection-filename>
^ unzip in the ~/Downloads/ProtonVPN/configs/ directory


Please see "2. Get the ProtonVPN config files" on this page: https://protonvpn.com/support/linux-openvpn/

2022 04 04 ProtonVPN configuration files download.png

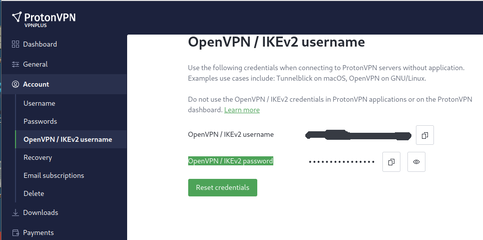

Step-8: Find your ProtonVPN credentials to use with OpenVPN

When logged in to ProtonVPN, click on Dashboard. (at left margin) then click on Account.

Find your OpenVPN / IKEv2 username and OpenVPN / IKEv2 password

2022 03 31 ProtonVPN credentials redacted 985x479.png


See also: "3. Find your ProtonVPN credentials (needed to login via OpenVPN to the ProtonVPN service) " on this page: https://protonvpn.com/support/linux-openvpn/

Starting a ProtonVPN connection using OpenVPN

/bin/sudo openvpn --config <path-to-ProtonVPN-configuration-file-opvn>
^ starting a ProtonVPN connection using openvpn

Example:

[user@localhost ~]$ /bin/sudo openvpn --config ~/Downloads/ProtonVPN/configs/37.120.198.178.udp.ovpn
2022-04-11 14:25:44 DEPRECATED OPTION: --cipher set to 'AES-256-CBC' but missing in --data-ciphers (AES-256-GCM:AES-128-GCM). Future OpenVPN version will ignore --cipher for cipher negotiations. Add 'AES-256-CBC' to --data-ciphers or change --cipher 'AES-256-CBC' to --data-ciphers-fallback 'AES-256-CBC' to silence this warning.
2022-04-11 14:25:44 OpenVPN 2.5.0 x86_64-mageia-linux-gnu [SSL (OpenSSL)] [LZO] [LZ4] [EPOLL] [PKCS11] [MH/PKTINFO] [AEAD] built on Mar 18 2022
2022-04-11 14:25:44 library versions: OpenSSL 1.1.1n  15 Mar 2022, LZO 2.10
🔐 Enter Auth Username: ***REDACTED***REDACTED***
🔐 Enter Auth Password: *************************
2022-04-11 14:26:09 NOTE: the current --script-security setting may allow this configuration to call user-defined scripts
2022-04-11 14:26:09 Outgoing Control Channel Authentication: Using 512 bit message hash 'SHA512' for HMAC authentication
2022-04-11 14:26:09 Incoming Control Channel Authentication: Using 512 bit message hash 'SHA512' for HMAC authentication


    [ Text deleted for brevity ]


2022-04-11 14:26:10 net_route_v4_add: 0.0.0.0/1 via 10.27.0.1 dev [NULL] table 0 metric -1
2022-04-11 14:26:10 net_route_v4_add: 128.0.0.0/1 via 10.27.0.1 dev [NULL] table 0 metric -1
2022-04-11 14:26:10 Initialization Sequence Completed
^ Example showing starting a ProtonVPN connection using openvpn
Note: when prompted "Enter Auth Username" respond with OpenVPN / IKEv2 username and for "Enter Auth Password" use OpenVPN / IKEv2 password
NB The VPN connection remains up as long as the openvpn process is running. The shell prompt does not appear until the openvpn command completes.
To close the VPN type CONTROL-C to interrupt the openvpn command


Adding VPN network interface tun0 to firewall configuration

The first time openvpn makes a connection it will add a new network interface tun0.

This can be seen using the /usr/sbin/ifconfig command.

tun0 needs to be added to the Mageia firewall configuration otherwise no network traffic will pass over tun0.

To add tun0: first start openvpn and (in a second shell) simply run the Mageia firewall configuration command: drakfirewall.

Go through each step accepting the settings already there. When you get to the list of network interfaces you should see tun0. Complete the settings and exit drakfirewall.

Now, the firewall will allow traffic over tun0.


This step only needs to be done once when the new tun0 network interface is added by running the openvpn command.


Verifying ProtonVPN connection is up

When the ProtonVPN connection has been established with the openvpn command, a new network interface tun0 will be active.

You can manually check (as shown below) or download and run vpn_status [4] script.

Check status with:

/usr/sbin/ifconfig tun0 2>&1 >/dev/null && echo "VPN tun0 is active" || echo "VPN tun0 is not active"
^ Checking if network interface tun0 is active

Example-1: VPN not active

[user@localhost ~]$ ifconfig tun0 2>&1 >/dev/null && echo "VPN tun0 is active" || echo "VPN tun0 is not active"
tun0: error fetching interface information: Device not found
VPN tun0 is not active
^ Example: checking if network interface tun0 is active. Here is not active.

Example-2: VPN active

[user@localhost ~]$  ifconfig tun0 2>&1 >/dev/null && echo "VPN tun0 is active" || echo "VPN tun0 is not active"
VPN tun0 is active
^ Example: checking if network interface tun0 is active. Here is active.


Also, if the VPN is active then a new nameserver will be defined in /etc/resolv.conf.
The ProtonVPN nameserver will be at the IP address of the VPN endpoint.
Examine /etc/resolv.conf to find the IP address of the ProtonVPN nameserver and confirm it responds to ICMP echo requests (ping):

for ns in $(grep nameserver /etc/resolv.conf | sed -e "s/.* //" ); do
        echo
        echo "ping -c2 ${ns}"
        ping -c2 ${ns}
        if [ $? = 0 ]; then
                echo "connection to nameserver ${ns} is up"
        else
                echo "connection to nameserver ${ns} is down"
        fi
done
^ Example showing testing network connectivity to each nameserver in /etc/resolv.conf

If all the ping commands in above script get a response then the VPN is likely to be up.

Check using https://ipleak.net/ in your web browser.

This will show the external IP address of the ProtonVPN endpoint.
This should correspond with whatever was selected with the --config option when the connection was started using openvpn.

Another check for the external IP address of the ProtonVPN endpoint:

dig TXT +short o-o.myaddr.l.google.com @ns1.google.com | awk -F'"' '{ print $2}'
^ Display the external IP address

Check the routing table to see the default gateway IP address is set to the IP address of the ProtonVPN endpoint:


netstat -rn
^ Display the routing table

Example:

[user@localhost ~]$ netstat -rn
Kernel IP routing table
Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
0.0.0.0         10.28.0.1       128.0.0.0       UG        0 0          0 tun0
0.0.0.0         192.168.141.2   0.0.0.0         UG        0 0          0 enp0s25
10.28.0.0       0.0.0.0         255.255.0.0     U         0 0          0 tun0
128.0.0.0       10.28.0.1       128.0.0.0       UG        0 0          0 tun0
169.254.0.0     0.0.0.0         255.255.0.0     U         0 0          0 enp0s25
185.159.157.18  192.168.141.2   255.255.255.255 UGH       0 0          0 enp0s25
192.168.141.0   0.0.0.0         255.255.255.0   U         0 0          0 enp0s25
^ Example displaying routing table with netstat -rn command
Here the default gateway (for destination 0.0.0.0) is 10.28.0.1 on interface tun0 which is the ProtonVPN endpoint IP address


Using vpn_status script

Download:

wget -O - https://raw.githubusercontent.com/wikigazer/vpn_status/main/vpn_status > ~/bin/vpn_status
chmod 755 ~/bin/vpn_status
^ Downloading vpn_status script and making it executable


Example: vpn_status when VPN is not active

[user@localhost ~]$ vpn_status
Checking for network interface tun0
ifconfig tun0
tun0: error fetching interface information: Device not found
+-----------------------------------------------------+
| Network interface tun0 not found: VPN is not active |
+-----------------------------------------------------+
^ Example: vpn_status showing VPN is not active


Example: vpn_status when VPN is active

[user@localhost ~]$ vpn_status
Checking for network interface tun0
ifconfig tun0
tun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST>  mtu 1500
        inet 10.27.0.15  netmask 255.255.0.0  destination 10.27.0.15
        inet6 fe80::a20c:3b42:d5b3:9f40  prefixlen 64  scopeid 0x20<link>
        unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 500  (UNSPEC)
        RX packets 12520  bytes 6494566 (6.1 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 11744  bytes 1836708 (1.7 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

VPN active on network interface: tun0

Checking default gateway address
netstat -rn | grep ^0.0.0.0 | head -1 | awk '{print }'
10.27.0.1

Checking network connectivity to default gateway: 10.27.0.1
ping -c2 10.27.0.1
PING 10.27.0.1 (10.27.0.1) 56(84) bytes of data.
64 bytes from 10.27.0.1: icmp_seq=1 ttl=64 time=7.20 ms
64 bytes from 10.27.0.1: icmp_seq=2 ttl=64 time=7.31 ms

--- 10.27.0.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 7.201/7.257/7.313/0.056 ms
connection to default gateway 10.27.0.1 is up

Checking for nameserver IP address
grep nameserver /etc/resolv.conf
nameserver 10.27.0.1

Checking network connectivity to nameserver(s)

ping -c2 10.27.0.1
PING 10.27.0.1 (10.27.0.1) 56(84) bytes of data.
64 bytes from 10.27.0.1: icmp_seq=1 ttl=64 time=7.55 ms
64 bytes from 10.27.0.1: icmp_seq=2 ttl=64 time=7.81 ms

--- 10.27.0.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 7.551/7.680/7.809/0.129 ms
connection to nameserver 10.27.0.1 is up

Checking external IP address
dig TXT +short o-o.myaddr.l.google.com @ns1.google.com | awk -F\" '{ print $2}'
37.120.198.182

Checking network connectivity to well known external IP address
ping -c2 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=57 time=8.43 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=57 time=13.2 ms

--- 8.8.8.8 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 8.433/10.794/13.155/2.361 ms
connection to external IP address 8.8.8.8 is up

Checking network route to well know external website
/bin/sudo tcptraceroute google.com
tcptraceroute: Symbol `pcap_version' has different size in shared object, consider re-linking
Selected device tun0, address 10.27.0.15, port 36981 for outgoing packets
Tracing the path to google.com (216.58.212.238) on TCP port 80 (http), 30 hops max
 1  lhr25s28-in-f14.1e100.net (216.58.212.238) [open]  7.592 ms  8.006 ms  7.443 ms
connection to google.com is up
completed
+-------------------------------------+
| Good news: VPN is up and functional |
+-------------------------------------+
^ Example: vpn_status showing VPN is active


openvpn connection status from SIGUSR2 signal

Openvpn status can be found by sending a SIGUSR2 signal to the openvpn process.

Authenticated root, send SIGUSR2 signal to the openvpn process:

kill --signal SIGUSR2 $(ps -ef | grep -v grep | grep  " openvpn " | head -1 | awk '{print $2}')
^ sending a SIGUSR2 signal to the openvpn process ID causes status data to be displayed

Example:

[user@localhost ~]$ /bin/sudo kill --signal SIGUSR2 $(ps -ef | grep -v grep | grep  " openvpn " | head -1 | awk '{print $2}')
[sudo] password for user:
^ Example: sending a SIGUSR2 signal to the openvpn process


2022-04-11 15:01:33 event_wait : Interrupted system call (code=4)
2022-04-11 15:01:33 OpenVPN STATISTICS
2022-04-11 15:01:33 Updated,2022-04-11 15:01:33
2022-04-11 15:01:33 TUN/TAP read bytes,2397708
2022-04-11 15:01:33 TUN/TAP write bytes,7180483
2022-04-11 15:01:33 TCP/UDP read bytes,7569872
2022-04-11 15:01:33 TCP/UDP write bytes,2764405
2022-04-11 15:01:33 Auth read bytes,7180483
2022-04-11 15:01:33 pre-compress bytes,0
2022-04-11 15:01:33 post-compress bytes,0
2022-04-11 15:01:33 pre-decompress bytes,0
2022-04-11 15:01:33 post-decompress bytes,0
2022-04-11 15:01:33 END
^ Example: status data displayed by openvpn process on receipt of SIGUSR2 signal


Stopping openvpn connection

To stop the openvpn connection: type CONTROL-C in the shell where the openvpn connection was started. (see also above: starting openvpn connection).

This will close the ProtonVPN connection and restore /etc/resolv.conf to what it was before. So DNS resolution will go back to how it was before the VPN was established.

Example:

^C2022-04-08 00:19:33 event_wait : Interrupted system call (code=4)
2022-04-08 00:19:33 SIGTERM received, sending exit notification to peer
2022-04-08 00:19:34 net_route_v4_del: 185.159.157.89/32 via 192.168.141.2 dev [NULL] table 0 metric -1
2022-04-08 00:19:34 net_route_v4_del: 0.0.0.0/1 via 10.22.0.1 dev [NULL] table 0 metric -1
2022-04-08 00:19:34 net_route_v4_del: 128.0.0.0/1 via 10.22.0.1 dev [NULL] table 0 metric -1
2022-04-08 00:19:34 Closing TUN/TAP interface
2022-04-08 00:19:34 net_addr_v4_del: 10.22.0.2 dev tun0
2022-04-08 00:19:34 /etc/openvpn/update-resolv-conf tun0 1500 1584 10.22.0.2 255.255.0.0 init
2022-04-08 00:19:34 SIGTERM[soft,exit-with-notification] received, process exiting
^ Example: hitting CTRL-C on the openvpn command closes down the VPN connection


DNS resolution

Note that when the ProtonVPN connection is established with the openvpn command DNS resolution will be processed by the ProtonVPN nameserver not whatever nameservers you may have already defined in /etc/resolv.conf.

If you normally use an internal DNS nameserver for your own local network that local DNS namespace will not be served by the ProtonVPN nameserver.


Appendicies

Appendix-1: References

ref# title link
[1] ‎ OpenVPN https://openvpn.net/
[2] ‎ ProtonVPN https://protonvpn.com/
[3] ‎ "Configuring Shorewall Firewall to Allow OpenVPN Con" https://forums.mageia.org/en/viewtopic.php?f=25&t=12635
[4] ‎ vpn_status script https://raw.githubusercontent.com/wikigazer/vpn_status/main/vpn_status
[5] ‎ /etc/openvpn/update-resolv-conf script https://forums.mageia.org/en/download/file.php?id=1798&sid=b56c294144b2b4c0838930327d6a52f7


Appendix-2: Checklist

# ✔️ item link comment
1 sudo Configuring_sudo Needed for configuring and running openvpn
2 tcptraceroute install tcptraceroute Shows network route for connections
3 directories Make directories Make local directories for ProtonVPN downloads: ~/Downloads/ProtonVPN/configs/
4 network interface tun0 Status of network interface before VPN connection
5 routing pre-VPN routing table, default gateway, external IP Status of routing table, default gateway, external IP address before VPN connection
6 openvpn install openvpn
7 resolvconf install resolvconf
8 /etc/openvpn/update-resolv-conf Install update-resolv-conf Needed by openvpn command
9 /etc/openvpn/update-resolv-conf set permissions on update-resolv-conf chmod 755 /etc/openvpn/update-resolv-conf
10 Register free ProtonVPN account Register
11 Login ProtonVPN Login
12 Download ProtonVPN config files Download Single .opvn configuration files to: ~/Downloads/ProtonVPN/configs/<config_file_name.opvn>
Zip collections to: ~/Downloads/ProtonVPN then cd ~/Downloads/ProtonVPN; unzip ../<zip-file-name>
13 ProtonVPN credentials find credentials Find your OpenVPN / IKEv2 username and OpenVPN / IKEv2 password on your ProtonVPN account.
14 Start openvpn open connection start ProtonVPN connection using openvpn with one of the .opvn files in ~/Downloads/ProtonVPN/configs/
15 Verify VPN is functional verify VPN running Check manually or run the vpn_status script to confirm VPN is working
16 close VPN stopping VPN <ctrl>-C on openvpn command
17 Verify VPN is non-functional verify VPN not running Check manually or run the vpn_status script to confirm VPN is not working
18 Confirm pre-VPN DNS configuration Closing the VPN should have returned DNS configuration to the state pre-VPN: cat /etc/resolv.conf

Return to top

Retrieved from "https://wiki.mageia.org/mw-en/index.php?title=Configuring_OpenVPN_with_ProtonVPN_in_Mageia&oldid=55960"
